| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD B650 | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC4080 Codec 7.1-Channel High Performance Audio Supports S/PDIF output Supports up to 32-Bit/384 kHz playback on front panel |
|
| Expansion Slots | ||
| PCI | 2x PCI-E x16 slot Support x16/ x4 1x PCI-E x1 slot PCI_E1 PCIe 4.0 supports up to x16 (From CPU) PCI_E2 PCIe 4.0 supports up to x4 (From Chipset) PCI_E3 PCIe 3.0 supports up to x1 (From Chipset) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 DIMMs | |
| Supported Memory | Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz | |
| Maximum Memory | 128GB | |
| Graphics | ||
| Graphics | 1x HDMI 1x DisplayPort Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 4x USB 2.0 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type C |
|
| Display Port (s) | 1x DisplayPort | |
| USB (s) | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 2x USB 3.2 Gen1 Type A (Front) 3x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear) |
|
| LAN Port (s) | Realtek RTL8125B 2.5Gbps LAN | |
| Supported Storage | 3x M.2 slot M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 6x SATA 6G port |
|
| Audio | Audio Connectors | |
| Wireless Communication module | AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2 |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| RAID | Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
|
| Others | ||
| Special Features | 4x EZ Debug LED | |
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

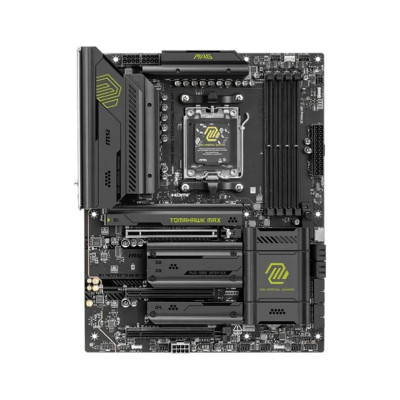

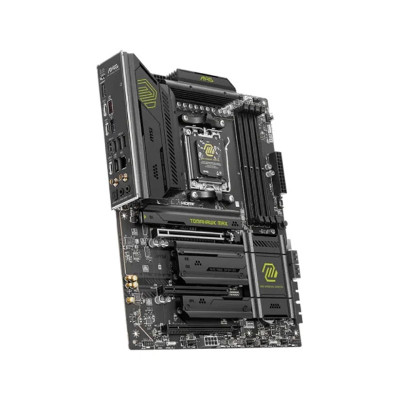

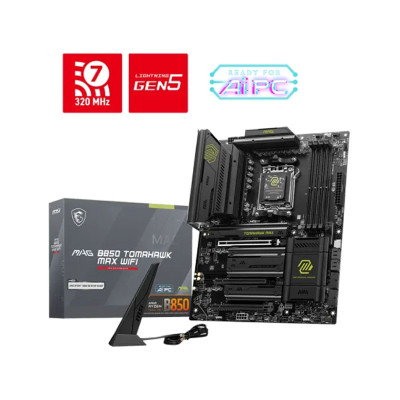

The MSI MAG B850 Tomahawk MAX WiFi AM5 ATX Motherboard is built for gamers, creators, and PC enthusiasts who demand nothing short of premium performance. Designed with cutting-edge features, advanced connectivity, and superior cooling, this motherboard delivers a powerhouse platform for AMD Ryzen 9000, 8000, and 7000 Series Desktop Processors. Whether you’re building a gaming rig or a productivity workstation, the B850 Tomahawk MAX ensures unmatched stability, speed, and efficiency for every task.
The MSI MAG B850 Tomahawk MAX is engineered around the AMD B650 chipset, offering comprehensive support for the latest Ryzen 9000, 8000, and 7000 series CPUs. The AM5 socket ensures future-ready compatibility, enabling users to enjoy next-gen performance and upgradability. With this motherboard, you’re investing in long-term power and reliability.
Equipped with four DDR5 DIMM slots, this motherboard supports up to 128GB of DDR5 memory. Experience blistering speeds up to 6600+ MHz (OC), ensuring smooth multitasking, faster load times, and improved gaming performance. The optimized DDR5 architecture ensures stability and efficiency, making it perfect for demanding applications and heavy workloads.
With 2x PCIe x16 slots and 1x PCIe x1 slot, the B850 Tomahawk MAX offers extensive expansion options for GPUs, capture cards, and more. The primary PCIe 4.0 x16 slot provides full-bandwidth connectivity directly from the CPU, guaranteeing ultra-fast data transfer rates and maximum performance for modern graphics cards.
Storage flexibility reaches new heights with three PCIe 4.0 M.2 slots and six SATA 6G ports. The M.2 slots support NVMe SSDs for faster boot times and transfer speeds, while SATA ports ensure compatibility with high-capacity hard drives. Whether you’re gaming, editing, or streaming, this motherboard ensures your data is accessed instantly.
The Realtek RTL8125B 2.5Gbps LAN and AMD Wi-Fi 6E provide ultra-fast, stable, and low-latency networking. The built-in Wi-Fi 6E module offers support for MU-MIMO, Bluetooth 5.2, and the latest 6GHz band, ensuring seamless online gaming and smooth wireless performance. Stay connected with high-speed internet whether wired or wireless.
Experience crystal-clear sound with the Realtek ALC4080 7.1-Channel High-Performance Audio Codec. Supporting up to 32-bit/384 kHz playback, it delivers studio-grade audio precision. Whether gaming or watching movies, every sound comes alive with immersive detail and clarity, enhanced further by S/PDIF output and front panel support.

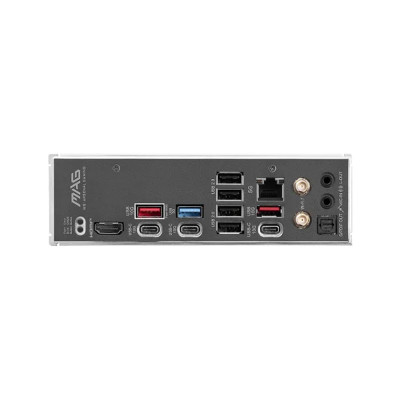

Connectivity is never an issue with a rich assortment of ports. The board features multiple USB 3.2 Gen2 and Gen2x2 Type-C ports for fast data transfers, alongside HDMI 2.1 and DisplayPort 1.4 supporting up to 8K 60Hz resolution. It’s the ideal solution for creators and gamers who rely on multiple displays and high-speed peripherals.
MSI’s premium thermal solutions ensure optimal performance under heavy load. With multiple fan headers including CPU, pump, and system fan connectors, plus support for RGB lighting and EZ Debug LED indicators, you can build a visually stunning system with full control and effortless troubleshooting.
Featuring TPM 2.0 support and RAID configurations, the MAG B850 Tomahawk MAX offers both security and speed. RAID 0, 1, and 10 for SATA and RAID 0/1 for NVMe drives ensure your data is safe and accessible. Whether for business or gaming, you get unmatched system integrity and responsiveness.
At Potaka IT, we ensure that every product, including the MSI MAG B850 Tomahawk MAX WiFi AM5 ATX Motherboard, is 100% genuine and sourced directly from authorized distributors. You get brand-new products with full warranty and after-sales support you can trust. We provide the best market price in Bangladesh, ensuring value for your money without compromising on quality. Potaka IT frequently offers exclusive discounts and bundle deals for gamers, builders, and tech enthusiasts.
The latest price of MSI MAG B850 Tomahawk MAX WiFi Motherboard in Bangladesh is 38,000৳. You can buy the MSI MAG B850 Tomahawk MAX WiFi Motherboard at best price from our website or visit any of our showrooms.
