| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E | |
| BIOS | Flash BIOS Button | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processors) |
|
| M.2 Socket | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4x UDIMM | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8200+ MT/s 1DPC 2R Max speed up to 6400+ MT/s 2DPC 1R Max speed up to 6400+ MT/s 2DPC 2R Max speed up to 6000+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only * CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility. • The DIMM slots on this motherboard have double-sided latches. |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Display Port (s) | 1x Type-C DisplayPort | |

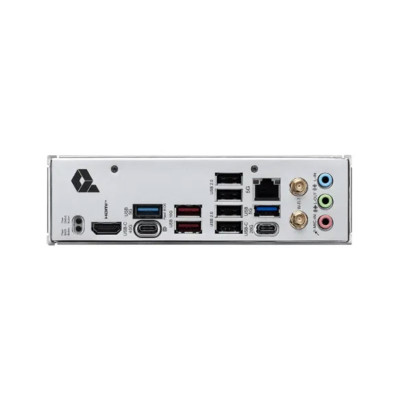

| USB (s) | 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Supported Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) *Please refer to the manual for M.2 SSD heatsink restrictions. |
|
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| RAID | Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen 9000 series processors. |
|
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years Warranty | |

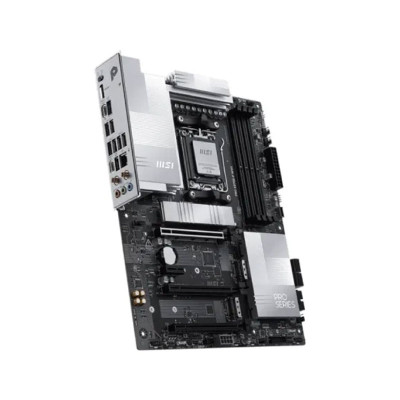

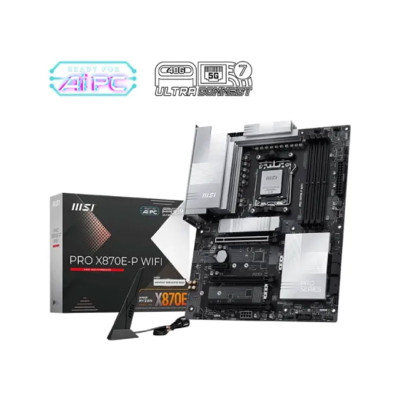

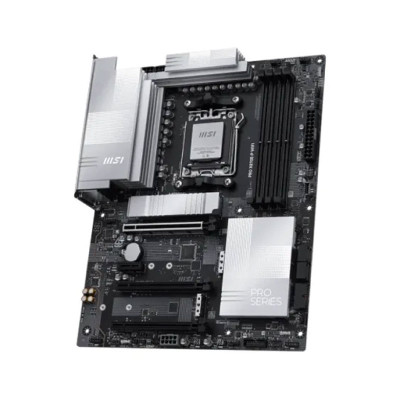

The MSI PRO X870E-P WIFI AM5 ATX Motherboard is a powerful and future-ready motherboard designed for gamers, creators, and professionals who want top-tier performance with the latest AMD platform. Built with the AMD X870E chipset and AM5 socket, this motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors. With PCIe 5.0, DDR5 memory support, Wi-Fi 7, USB4 connectivity, and advanced expansion options, it is an excellent choice for building a high-performance desktop PC.
This MSI AM5 motherboard is engineered to support the newest AMD Ryzen desktop processors, giving users a smooth upgrade path and long-term platform value. Whether you are assembling a gaming PC, content creation workstation, or productivity machine, the MSI PRO X870E-P WIFI delivers reliable speed and modern features.
Enjoy faster multitasking and next-generation memory speed with support for DDR5 RAM up to 8200+ MT/s overclocked. The board includes four UDIMM slots with up to 256GB maximum memory capacity in dual-channel mode. It also supports AMD EXPO memory profiles, helping users unlock optimized RAM performance with ease.
The MSI PRO X870E-P WIFI motherboard includes PCIe 5.0 x16 support for the latest graphics cards, ensuring maximum bandwidth for gaming and creative workloads. It also offers three M.2 slots, including one PCIe 5.0 x4 slot for ultra-fast NVMe SSD storage and two PCIe 4.0 M.2 slots for additional storage expansion. Four SATA 6Gbps ports are available for HDDs and SATA SSDs.
Stay connected with advanced Wi-Fi 7 technology that supports 2.4GHz, 5GHz, and 6GHz bands with speeds up to 5.8Gbps. The board also features Realtek 5G LAN for ultra-fast wired networking, ideal for online gaming, streaming, and heavy data transfers. Bluetooth 5.4 support adds seamless wireless connectivity for accessories and devices.
This motherboard is packed with modern ports for versatile connectivity. It includes USB 40Gbps Type-C, USB 20Gbps Type-C, multiple USB 10Gbps Type-A ports, and USB 5Gbps ports. HDMI 2.1 and USB Type-C DisplayPort output support up to 4K 60Hz resolution when paired with processors that feature integrated graphics.
The MSI PRO X870E-P WIFI offers multiple fan headers, pump support, and system fan connectors for efficient cooling setups. EZ Debug LED and EZ Memory Detection LED make troubleshooting easier during PC building. The Flash BIOS Button allows BIOS updates without hassle, adding convenience for upgrades.
Potaka IT provides genuine MSI motherboards at competitive prices in Bangladesh. When you buy from Potaka IT, you receive trusted customer support, authentic warranty service, and access to the latest PC components. If you are looking for an original MSI AM5 motherboard with fast delivery and dependable service, Potaka IT is a reliable choice.
The latest price of MSI PRO X870E-P WIFI AM5 Motherboard in Bangladesh is 39,000৳. You can buy the MSI PRO X870E-P WIFI AM5 Motherboard at best price from our website or visit any of our showrooms.
