| Basic Information | ||
| Supported CPU | Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
|
| Chipset | AMD X870E | |
| Form Factor | ATX 243.84mmx304.8mm |
|
| Audio | Realtek ALC897 7.1-Channel High Definition Audio |
|
| Expansion Slots | ||
| PCI | 3x PCI-E x16 slot 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
|
| M.2 Socket | 3x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4x DIMMs | |
| Supported Memory | Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. Overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 6400+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only* |
|
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | 1x HDMI Support HDMITM 2.1, maximum resolution of 4K 60Hz 1x Type-C DisplayPort USB4 port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz |
|
| Connector & Ports | ||
| HDMI | 1x HDMI | |
| Internal I/O Ports | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 6x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports |
|
| Display Port (s) | 1x Type-C DisplayPort | |
| USB (s) | 4x USB 2.0 (Rear) 6x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 2x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) 1x USB 40Gbps Type C (Rear) |
|
| LAN Port (s) | Realtek 8126VB 5G LAN | |
| Supported Storage | M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) |
|
| Audio | 1x Front Audio (JAUD) | |
| Wireless Communication module | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM |
|
| TPM (Trusted Platform Module ) | 1x TPM pin header(Support TPM 2.0) | |
| RAID | • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
|
| Others | ||
| Special Features | 4x EZ Debug LED 1x EZ Memory Detection LED |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

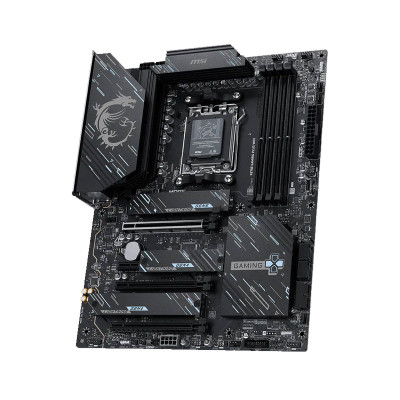

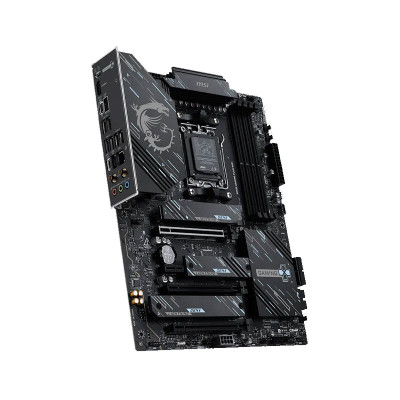

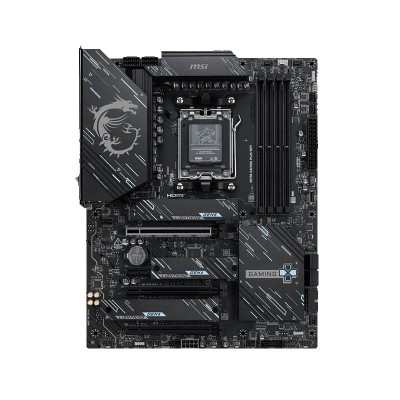

The MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard is built for gamers and PC enthusiasts who want modern connectivity, fast DDR5 memory and flexible upgrade options. Powered by the AMD X870E chipset, it supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors using the AM5 socket. Its key features include PCIe 5.0 graphics support, three M.2 SSD slots, Wi-Fi 7, 5G LAN and high-speed USB4 connectivity. Whether you are building a high-performance gaming PC, a content creation system or a versatile desktop for demanding applications, this MSI motherboard provides a feature-rich foundation for your setup.
The MSI X870E GAMING PLUS WIFI supports compatible AMD Ryzen 9000, 8000 and 7000 Series desktop processors. This gives builders several CPU options, from gaming-focused configurations to powerful multitasking systems. Its ATX form factor fits many standard ATX-compatible cases, making it a practical choice for custom PC builds. Always verify the selected processor's compatibility and required BIOS version before installation.
With four DDR5 DIMM slots, dual-channel memory architecture and support for up to 256GB of RAM, this motherboard accommodates demanding games, creative software and heavy multitasking. Compatible memory kits can reach DDR5-8200+ MT/s through overclocking under supported configurations. AMD EXPO memory profiles make it easier to configure compatible high-speed RAM. Actual speeds depend on the processor, memory kit and number of installed modules.
The primary PCIe 5.0 x16 slot supports compatible graphics cards and offers high bandwidth for modern gaming hardware. The board also provides three M.2 slots, including one PCIe 5.0 x4 slot with supported Ryzen 9000 and 7000 Series processors, plus two PCIe 4.0 x4 M.2 slots. Four SATA 6Gb/s ports provide additional storage options. This combination lets you configure fast NVMe SSDs for your operating system, games and large project files while retaining room for extra storage drives.
Note that the primary graphics slot and first M.2 slot have processor-dependent capabilities. Ryzen 8000 Series processors may limit the first M.2 slot to PCIe 4.0, while supported Ryzen 8700, 8600 and 8400 Series processors provide different graphics-slot bandwidth from Ryzen 9000 and 7000 Series models.
Built-in Wi-Fi 7 supports compatible 2.4GHz, 5GHz and 6GHz networks, with a stated maximum wireless transmission rate of up to 5.8Gbps under supported conditions. Bluetooth 5.4 connects compatible wireless accessories, while Realtek 5G LAN provides high-speed wired networking for gaming, local file transfers and network storage. Actual network speeds depend on your router, internet connection and network equipment.

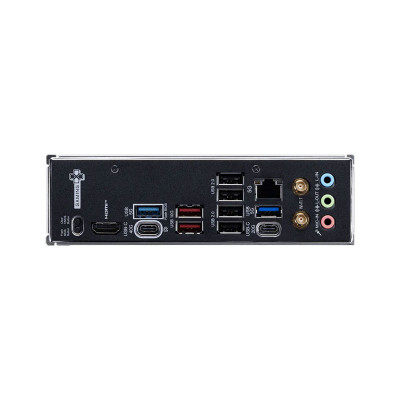

The rear I/O includes USB4 Type-C at up to 40Gbps and another Type-C port at up to 20Gbps. Additional USB Type-A ports and a front-panel USB Type-C connector make it convenient to connect external SSDs, gaming peripherals and compatible accessories.
This motherboard suits gamers building a modern AMD Ryzen PC, streamers managing multiple applications, and content creators working with large files. It is also a strong option for enthusiasts who want PCIe 5.0 storage, faster networking and room to expand their system. Compared with a basic AM5 motherboard, the X870E GAMING PLUS WIFI offers more advanced connectivity, although a budget B650 or B850 board may be sufficient for entry-level builds.
Looking for the MSI X870E GAMING PLUS WIFI AM5 ATX Motherboard in Bangladesh? Explore the product listing at Potaka IT to check current price, availability and warranty information. Browse our motherboard collection, explore MSI AMD motherboards, discover more products on our MSI brand page, or find compatible hardware in our PC components collection.
It supports AMD Ryzen 9000, 8000 and 7000 Series desktop processors using the AM5 socket. Check the official compatibility list for your exact CPU.
It supports up to 256GB of DDR5 memory across four DIMM slots in dual-channel mode. Supported speeds depend on the processor and memory configuration.
Yes. Its first M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors. Ryzen 8000 Series processors may limit this slot to PCIe 4.0 x4.
Yes. It includes Wi-Fi 7, Bluetooth 5.4 and a 5G LAN port. Full wireless performance depends on compatible networking equipment and regional support.
The latest price of MSI X870E GAMING PLUS WIFI Motherboard in Bangladesh is 39,000৳. You can buy the MSI X870E GAMING PLUS WIFI Motherboard at best price from our website or visit any of our showrooms.
