| Basic Information | ||
| Supported CPU | Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 |
|
| Chipset | Intel B760 Chipset | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors - Dedicated audio PCB layers - Audio cover |
|
| Expansion Slots | ||
| PCI | Intel 13th & 12th Gen Processors 1 x PCIe 5.0 x16 slot Intel B760 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x1 slots |
|
| M.2 Socket | Total supports 3 x M.2 slots | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | 7800+(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory Dual Channel Memory Architecture Supports Intel Extreme Memory Profile (XMP) OptiMem II |
|
| Maximum Memory | Max. 192GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort (Supports max. 4K@60Hz as specified in DisplayPort 1.4) 1 x HDMI port (Supports 4K@60Hz as specified in HDMI 2.1) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI port | |
| Internal I/O Ports | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C ) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thunderbolt (USB4) header |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 3 x USB 3.2 Gen 1 port (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard // TUF LANGuard |
|
| Supported Storage | Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel B760 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports |
|
| Audio | 5 x Audio jacks | |
| Wireless Communication module | Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band Bluetooth v5.3 |
|
| RAID | Intel Rapid Storage Technology supports SATA RAID 0/1/5/10. | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers |
|
| Bundled Software | ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey MemTest86 |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 years warranty | |

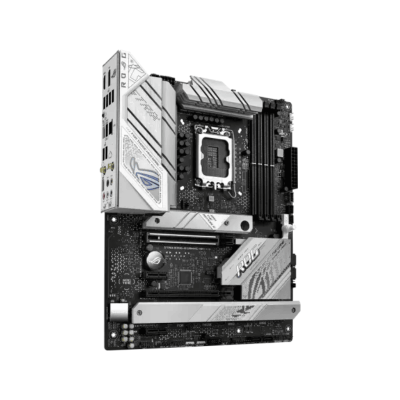

The Asus ROG STRIX B760-A GAMING WIFI DDR5 12th Gen & 13th Gen ATX Motherboard is designed for power users, gamers, and enthusiasts who want top-tier performance with next-gen connectivity and rock-solid reliability. Compatible with Intel’s 12th, 13th, and 14th Gen processors on the LGA1700 socket, this ATX motherboard combines style with substance, featuring DDR5 memory support, Wi-Fi 6E, PCIe 5.0, and cutting-edge thermal solutions. Whether you're building a high-performance gaming rig or a workstation, the STRIX B760-A delivers premium features and aesthetic appeal that fit right into your ROG setup.
This motherboard supports Intel's 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors, fully optimized with Intel Turbo Boost Technologies 2.0 and 3.0 for maximum performance.
Equipped with 4 DIMM slots, it supports DDR5 memory up to 7800+ MHz (OC), offering massive bandwidth and next-level responsiveness for gaming and multitasking.
Enjoy studio-grade sound quality with SupremeFX 7.1 surround audio, high-end capacitors, and Savitech amplification for immersive gaming and media experiences.
Loaded with PCIe 5.0 x16 for GPUs, three M.2 PCIe 4.0 slots for lightning-fast SSDs, USB 3.2 Gen 2x2 Type-C, HDMI 2.1, and DisplayPort 1.4 for ultra-high-definition output.
Stay ahead with ultra-fast wireless speeds via Wi-Fi 6E and secure wired networking using Intel 2.5Gb Ethernet with ASUS LANGuard for enhanced stability and protection.
Features like VRM heatsinks, multiple fan headers, and Q-Latch design ensure efficient cooling and easier DIY installation, even for first-time builders.
Customizable RGB lighting with addressable headers syncs with your entire ROG ecosystem, giving your build a personalized look that stands out.
Includes Armoury Crate, AI Suite 3, Sonic Studio III, and more to enhance your gaming experience, control performance, and monitor system health easily.
Looking for a reliable and high-performance motherboard in Bangladesh? Buy the Asus ROG STRIX B760-A GAMING WIFI DDR5 from Potaka IT and experience unmatched value, genuine products, and nationwide delivery. At Potaka IT, we ensure you get the latest tech with expert support and the best deals in BD. Shop now and take your PC build to the next level with confidence!
The latest price of Asus ROG STRIX B760-A GAMING WIFI DDR5 Motherboard in Bangladesh is 37,500৳. You can buy the Asus ROG STRIX B760-A GAMING WIFI DDR5 Motherboard at best price from our website or visit any of our showrooms.
