| Basic Information | ||
| Supported CPU | Supports Intel Core Ultra Processors (Series 2), LGA1851 Socket | |
| Chipset | INTEL B860 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS | |
| Form Factor | ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
|
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 Supports up to 32-bit/384 kHz playback |
|
| Expansion Slots | ||
| PCI | Intel Core Ultra Processors(Series 2) 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel B860 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) |
|
| M.2 Socket | 4 x M.2 | |
| Memory | ||
| Type | DDR5 | |
| Slots | 4 | |
| Supported Memory | 4 x DIMM slots, max. 256GB, DDR5 Support up to 9066MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM) Dual channel memory architecture Supports Intel Extreme Memory Profile (XMP) memory module DIMM Fit ASUS Enhanced Memory Profile III (AEMP III) |
|
| Maximum Memory | Maximum Memory Capacity 256GB | |
| Graphics | ||
| Graphics | 1 x DisplayPort 1 x HDMI port 1 x Intel Thunderbolt 4 port (USB Type-C) supports DisplayPort and Thunderbolt video outputs Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4. Supports 8K@60Hz with DSC as specified in HDMI 2.1. In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, with maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. VGA resolution support depends on the processors' or graphic cards' resolution. |
|
| Connector & Ports | ||
| HDMI | 1x HDMI 2.1 | |
| Internal I/O Ports | Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Chassis Intrusion header 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front System Panel header 1 x Thermal Sensor header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x Thunderbolt™ 4 (1 x USB Type-C®) 1 x USB 20Gbps port (1 x USB Type-C®) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi module 1 x Intel® 2.5Gb Ethernet port 2 x audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button |
|
| Display Port (s) | 1x DisplayPort 1.4a | |
| USB (s) | Rear USB (Total 9 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 1 x USB 10Gbps port (1 x Type-A) 6 x USB 5Gbps ports (6 x Type-A) Front USB (Total 6 ports) 1 x USB 10Gbps (1 x USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports * USB Type-C power delivery output: max. 5V/3A |
|
| LAN Port (s) | 1 x Intel 2.5Gb Ethernet ASUS LANGuard |
|
| Supported Storage | Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports Intel Core Ultra Processors(Series 2) M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel B860 Chipset M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled. Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. |
|
| Audio | 2 x Audio jacks | |
| Wireless Communication module | Wi-Fi 7 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4 Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E. |
|
| RAID | SATA RAID 0/1/5/10 | |
| Others | ||
| Special Features | Extreme Engine Digi+ - 5K Black metallic capacitors ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS button - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 headers |
|
| Bundled Software | ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - GameFirst - Power Saving ASUS Driver Hub AIDA64 Extreme (60 days free trial) HWiNFO ASUS GlideX TurboV Core Adobe Creative Cloud (Days Free Trial) Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year warranty | |

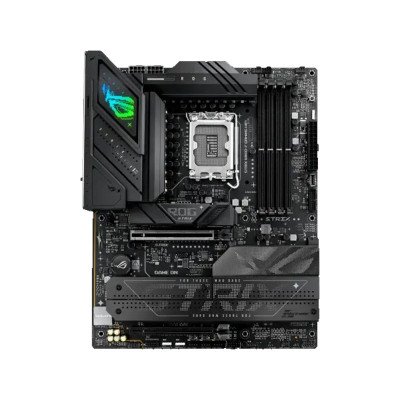

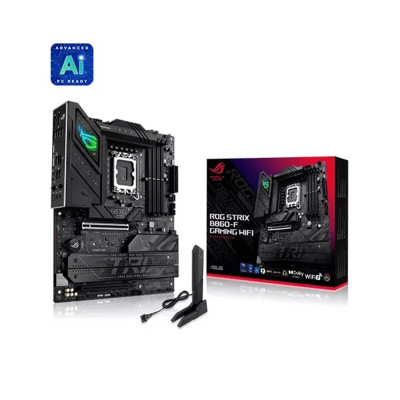

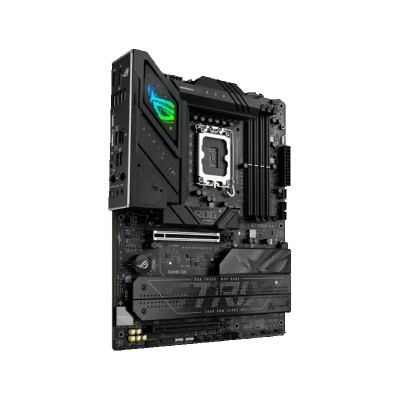

The ASUS ROG STRIX B860-F GAMING WIFI LGA 1851 ATX Motherboard is designed for gamers and PC enthusiasts building a modern desktop around Intel Core Ultra processors (Series 2). Featuring the Intel B860 chipset, DDR5 memory support up to 9066 MT/s (OC), Wi-Fi 7, Bluetooth 5.4, and PCIe 5.0 graphics connectivity, this ROG STRIX motherboard combines high-speed connectivity with flexible storage expansion. Its ATX layout, four M.2 slots, and comprehensive USB connectivity make it a practical foundation for gaming, streaming, and productivity systems.
Built for Intel Core Ultra Series 2 desktop processors using the LGA 1851 socket, the motherboard supports up to 256GB of DDR5 memory across four DIMM slots with a dual-channel architecture. Compatible Intel XMP memory profiles and ASUS Enhanced Memory Profile III (AEMP III) provide additional memory-configuration options. Supported speeds depend on the processor, memory kit, BIOS, and system configuration.
The primary PCIe 5.0 x16 slot supports compatible graphics cards, while a second PCIe 4.0 x16-length slot operates in x4 mode. Four M.2 sockets and four SATA 6Gb/s ports provide storage flexibility for operating systems, games, applications, and large project files. Note that installing an SSD in the M.2_4 slot disables the PCIEX16(G4) slot because they share bandwidth.

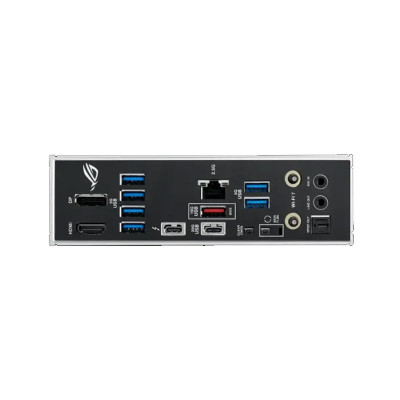

Integrated Wi-Fi 7 supports 2.4GHz, 5GHz, and 6GHz bands, with 160MHz bandwidth and a listed transfer rate of up to 2.9Gbps. Bluetooth 5.4 supports compatible wireless devices. Rear connectivity includes Thunderbolt 4 over USB Type-C, a separate USB 20Gbps Type-C port, USB Type-A connections, HDMI 2.1, DisplayPort 1.4a, and Intel 2.5Gb Ethernet.
Whether you're assembling a gaming PC, a streaming setup, or a productivity workstation, the ASUS ROG STRIX B860-F GAMING WIFI offers room for fast storage, high-speed networking, and compatible expansion hardware. ROG SupremeFX 7.1 audio with the ALC4080 codec supports up to 32-bit/384kHz playback. ASUS Q-Design features, M.2 Q-Latch, Q-Release Slim, BIOS FlashBack, and Clear CMOS help simplify selected installation and troubleshooting tasks.
For PC builders in Bangladesh, this motherboard is worth considering when building around an Intel Core Ultra Series 2 processor and DDR5 memory. Before purchasing, confirm your CPU socket, ATX case support, RAM compatibility, graphics card clearance, and storage layout. Wi-Fi 7's full functionality on Windows 11 requires version 24H2 or later, according to the supplied specifications. If you plan to use all expansion slots, review the M.2_4 bandwidth-sharing limitation first.
| Specification | Details |
|---|---|
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2) |
| Socket | LGA 1851 |
| Form Factor | ATX, 30.5 x 24.4cm |
| Memory | 4 x DDR5 DIMM, up to 256GB |
| Memory Speed | Up to 9066 MT/s (OC) |
| Graphics Slot | 1 x PCIe 5.0 x16 |
| Additional Slot | 1 x PCIe 4.0 x16-length, x4 mode |
| Storage | 4 x M.2, 4 x SATA 6Gb/s |
| Networking | Wi-Fi 7, Bluetooth 5.4, Intel 2.5Gb Ethernet |
| Rear USB | Thunderbolt 4 Type-C, USB 20Gbps Type-C, USB 10Gbps Type-A, 6 x USB 5Gbps Type-A |
| Display Outputs | HDMI 2.1, DisplayPort 1.4a, Thunderbolt 4 video output |
| Audio | ROG SupremeFX 7.1, ALC4080 |
| BIOS | 256Mb Flash ROM, UEFI AMI BIOS |
Browse motherboards, explore ASUS Intel motherboards, discover the ASUS collection, or compare other PC components for your next build.
It supports Intel Core Ultra Series 2 processors that use the LGA 1851 socket.
Yes. It has four DDR5 memory slots and supports up to 256GB, with speeds up to 9066 MT/s (OC), depending on the configuration.
Yes. It includes Wi-Fi 7 and Bluetooth 5.4, alongside Intel 2.5Gb Ethernet.
Visit Potaka IT to explore the motherboard listing and other PC components for your build.
