| Basic Information | ||
| Supported CPU | LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors L3 cache varies with CPU |
|
| Chipset | Intel Z790 Express Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Expansion Slots | ||
| PCI | CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM sockets | |
| Supported Memory | Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
|
| Maximum Memory | 128GB (32 GB single DIMM capacity) | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel HD Graphics support: 1 x USB Type-C port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 4096x2304@60 Hz * Support for drawing tablets and 20V@3A of power delivery. * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.0 version and HDCP 2.3. |
|
| Max Shared Memory | 128GB (32 GB single DIMM capacity) | |
| Connector & Ports | ||
| Internal I/O Ports | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 5 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x serial port header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 2 x temperature sensor headers 1 x Clear CMOS jumper |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 3.2 Gen 1 ports available through the internal USB header 2 x USB 2.0/1.1 ports on the back panel 4 x USB 3.2 Gen 1 ports on the back panel 4 x USB 2.0/1.1 ports available through the internal USB headers |
|
| LAN Port (s) | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Audio | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
|
| Wireless Communication module | Intel Wi-Fi 6E AX211 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) | |
| RAID | RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices |
|
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Years | |

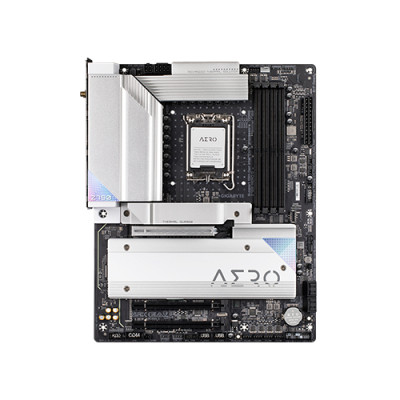

The GIGABYTE Z790 AERO G ATX Motherboard is engineered for performance-driven PC builders and creators who demand power, stability, and next-gen connectivity. Powered by the Intel Z790 chipset, this motherboard supports the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket, ensuring blazing-fast speeds for gaming, content creation, and multitasking. Built on the ATX form factor, it comes with high-end features like PCIe 5.0, DDR5 memory support, and Intel Wi-Fi 6E, making it an ideal pick for future-ready setups in Bangladesh.
Designed with the latest LGA1700 socket, the GIGABYTE Z790 AERO G fully supports Intel’s newest generation of CPUs, delivering unmatched processing power for gamers and professionals.
With the Intel Z790 Express chipset, this board enhances overall system performance, enables faster communication between components, and supports cutting-edge technologies like PCIe Gen 5 and DDR5 RAM.
Equipped with one PCIe 5.0 x16 and two PCIe 4.0 x4 slots, it offers ultra-fast bandwidth for the latest GPUs and expansion cards, along with AMD CrossFire support for dual GPU setups.
Featuring four DIMM slots, this board supports DDR5 memory speeds up to 7600MHz (OC) and a total capacity of 128GB, making it ideal for high-performance tasks and memory-intensive applications.
With five M.2 slots (including one PCIe 5.0) and four SATA 6Gb/s ports, you can build a blazing-fast, high-capacity storage array with RAID 0/1/5/10 support for both NVMe and SATA drives.
Enjoy superior connectivity with built-in Wi-Fi 6E for low-latency wireless networking and an Intel 2.5GbE LAN port for ultra-fast wired speeds—perfect for streaming, gaming, or remote work.
Get immersive audio with high-definition 7.1-channel surround sound and support for DSD audio via the back panel, enhanced further by customizable audio jack functions.
Offers a versatile USB Type-C port that supports both DisplayPort output and 20V@3A power delivery—perfect for external monitors and high-powered accessories.
Includes a wide range of connectors including USB 3.2 Gen 2x2, addressable RGB headers, multiple fan headers, and dedicated cooling for high-performance setups and custom builds.
Comes with GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup, and support for TPM 2.0 for system security and user-friendly BIOS management.
If you’re looking for the best price and authentic products in Bangladesh, Potaka IT is your go-to tech destination. When you buy the GIGABYTE Z790 AERO G ATX Motherboard from Potaka IT, you get guaranteed quality, expert support, and fast delivery across the country. Perfect for gamers, creators, and professionals, this motherboard brings a perfect balance of speed, stability, and future-proofing. Shop now from Potaka IT and build your next powerhouse PC with confidence.
The latest price of GIGABYTE Z790 AERO G ATX in Bangladesh is 44,500৳. You can buy the GIGABYTE Z790 AERO G ATX at best price from our website or visit any of our showrooms.
