| Basic Information | ||
| Supported CPU | Intel Core Ultra Processors(Series 2) | |
| Chipset | Intel Z890 Chipset | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
|
| Form Factor | ATX Form Factor; 30.5cm x 24.4cm | |
| Audio | Realtek® ALC1220 CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. |
|
| Expansion Slots | ||
| PCI | CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2) |
|
| M.2 Socket | CPU: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB) |
|
| Memory | ||
| Type | DDR5 | |
| Slots | 4 x DIMM | |
| Supported Memory | Support for DDR5 9200(O.C) / 9066(O.C) / 8933(O.C) / 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules. | |
| Maximum Memory | 256GB | |
| Graphics | ||
| Graphics | Integrated Graphics Processor-Intel® HD Graphics support: - 1 x Intel® Thunderbolt™ 4 connector (USB4® USB Type-C® port), supporting DisplayPort and Thunderbolt™ video outputs When a Thunderbolt™ monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output). When a USB4® USB Type-C® monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output). * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt™ devices that can be used is dependent on the number of the PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.) * Support for DisplayPort 2.1 version and HDCP 2.3 - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz * Support for HDMI 1.4 version - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 2.1 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.) |
|
| Connector & Ports | ||
| HDMI | 1 x HDMI | |

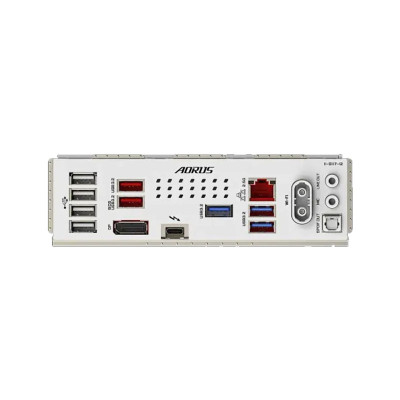

| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x HDMI port (Note) 1 x power button 1 x reset button 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x Intel® Thunderbolt™ 4 connectors (USB Type-C® ports) 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x DisplayPort (Note) 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
|
| Display Port (s) | 1 x DisplayPort | |
| USB (s) | CPU: - 1 x Intel® Thunderbolt™ 4 (USB Type-C®) ports on the back panel *Support up to 40Gbps with Thunderbolt devices *Support up to 20Gbps with USB4 devices *Support up to 10Gbps with USB 3.2 devices Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header) Chipset+2 USB 2.0 Hubs: - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers) |
|
| LAN Port (s) | 1 x Realtek 2.5Gb Ethernet ASUS LANGuard |
|
| Audio | 1 x front panel audio header 2 x audio jacks |
|
| Wireless Communication module | MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1) - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.4 - Support for 11be 160MHz wireless standard |
|
| TPM (Trusted Platform Module ) | 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| Others | ||
| Special Features | Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup |
|
| Bundled Software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|
| Warranty Information | ||
| Manufacturing Warranty | 3 Year Warranty | |

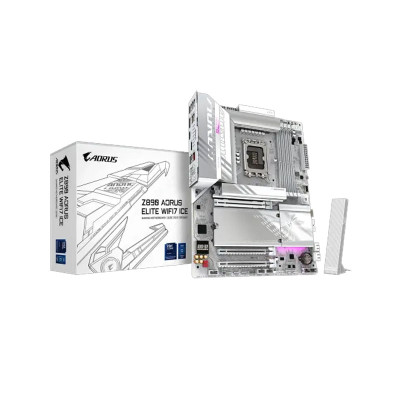

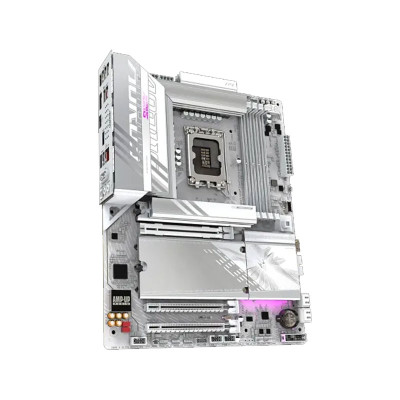

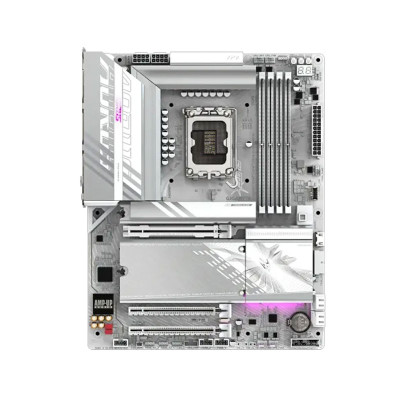

The Gigabyte Z890 AORUS ELITE WIFI-7 ICE LGA 1851 ATX Motherboard is a premium next-generation motherboard designed for Intel Core Ultra Series 2 processors. Built with advanced connectivity, ultra-fast DDR5 memory support, PCIe 5.0 technology, and powerful thermal solutions, this motherboard delivers exceptional gaming, content creation, and multitasking performance for high-end PC enthusiasts.
Powered by the Intel Z890 chipset, the Gigabyte Z890 AORUS ELITE WIFI-7 ICE is engineered to support the latest Intel Core Ultra Series 2 processors on the LGA 1851 socket. It provides optimized power delivery and enhanced system stability, making it an ideal foundation for gaming PCs, creator workstations, and high-performance builds.
This ATX motherboard supports up to 256GB of DDR5 memory with overclocking speeds reaching up to 9200MT/s. With four DIMM slots and advanced memory tuning support, users can experience faster multitasking, smoother gaming, and improved performance in demanding applications such as video editing, rendering, and streaming.
The Gigabyte Z890 AORUS ELITE WIFI-7 ICE features a PCIe 5.0 x16 slot for next-generation graphics cards and ultra-fast storage devices. It also includes four M.2 slots with PCIe 5.0 and PCIe 4.0 SSD support, ensuring lightning-fast data transfer speeds and rapid system responsiveness. Whether you are gaming or working with large files, this motherboard delivers outstanding storage performance.
Stay connected with the latest Wi-Fi 7 technology and Bluetooth 5.4 support for faster wireless networking, lower latency, and improved stability. The built-in Realtek 2.5Gb Ethernet port ensures high-speed wired networking for online gaming, streaming, and professional workloads, providing reliable connectivity for every situation.
Designed for stable high-performance operation, this motherboard includes multiple fan headers, water cooling pump support, and intelligent thermal management features. The advanced cooling system helps maintain optimal temperatures during heavy gaming sessions and demanding workloads, ensuring long-term reliability and stable performance.
Featuring the Realtek ALC1220 audio codec, the Gigabyte Z890 AORUS ELITE WIFI-7 ICE delivers high-definition 7.1-channel audio with rich sound clarity for gaming, entertainment, and content creation. Its premium ICE-themed design and durable components provide both visual appeal and dependable performance for modern PC setups.
This motherboard comes equipped with Intel Thunderbolt 4 support, delivering ultra-fast data transfer speeds up to 40Gbps and advanced display connectivity. Multiple USB 3.2 Gen 2 and USB Type-C ports ensure fast connections for external storage devices, peripherals, and accessories.
The Gigabyte Z890 AORUS ELITE WIFI-7 ICE includes advanced features such as Q-Flash Plus, Smart Backup, RGB lighting support, and GIGABYTE Control Center software. These features make BIOS updates, system customization, and RGB synchronization simple and convenient for both beginners and experienced PC builders.
When you purchase the Gigabyte Z890 AORUS ELITE WIFI-7 ICE LGA 1851 ATX Motherboard from Potaka IT, you are guaranteed a 100% genuine product at a competitive price. Potaka IT offers trusted customer service, authentic PC components, and reliable after-sales support to ensure a smooth and secure buying experience. It is the perfect destination for premium gaming motherboards and high-performance PC hardware.
The latest price of Gigabyte Z890 AORUS ELITE WIFI-7 ICE LGA ATX Motherboard in Bangladesh is 41,500৳. You can buy the Gigabyte Z890 AORUS ELITE WIFI-7 ICE LGA ATX Motherboard at best price from our website or visit any of our showrooms.
